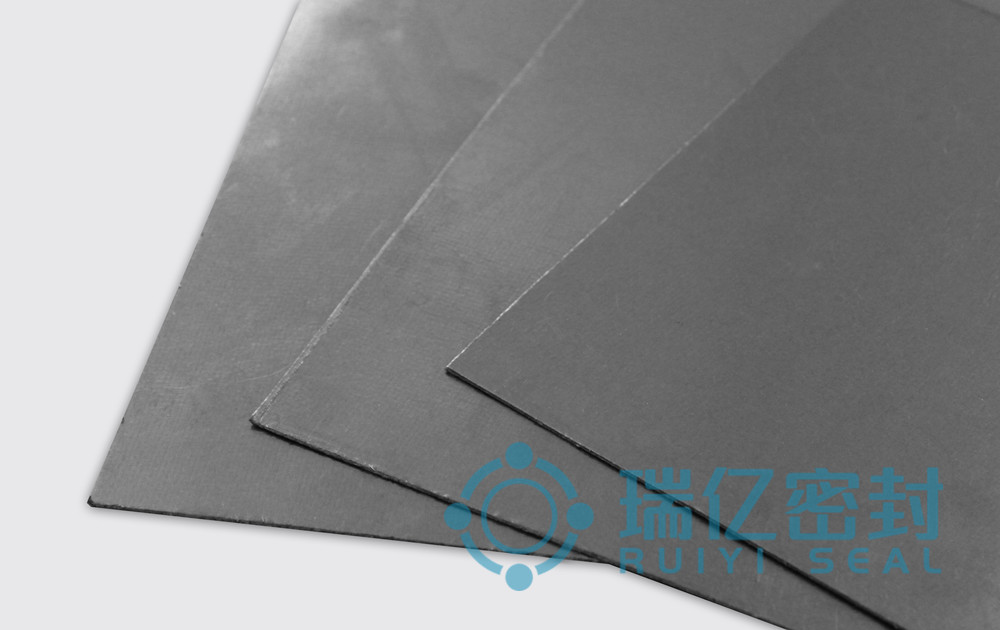

RF-W Reinforced Graphite Sheet
Flexible graphite sheet reinforced with SS304 or SS316 stainless steel wire mesh insert
Category: Reinforced Graphite Sheets
RF-W Reinforced graphite sheet is made with expanded graphite sheets reinforced with stainless steel wire mesh insert. The both sides are pure expanded graphite sheet, the metal core is one layer SS304 or SS316 wire mesh. The graphite layers and wire mesh are jointed together with glue bonded.
Reinforced graphite sheet is ideal gasket sheet materials for most industrial fluid sealing applications. Recommend to be used in refineries, chemical and petrochemical plants, paper mills, mines and other industrial fields.
- Reinforcement material: SS304/SS316 wire mesh
- Layers of metal core: 1 layer
- Working temperature: 650°C
- Working pressure: 140bar
- Bond: glue
Our products
Product code | Description |
RF-T | Reinforced graphite sheet with 0.10mm SS304 or SS316 tanged insert |
RF-F | Reinforced graphite sheet with 0.05mm SS304 or SS316 flat foil insert |
RF-W | Reinforced graphite sheet with stainless steel wire mesh insert |
RF-C | Reinforced graphite sheet with 0.20mm Tinplate tanged insert |
RF-G | Reinforced graphite sheet with glass fiber insert |
RF-AL | Reinforced graphite sheet with Aluminum foil insert |
RF-Ni | Reinforced graphite sheet with Nickel foil insert |
Dimensions
Thickness | Width | Length | |
RF-W | 0.8mm to 6.0mm | 1.0Mtr, 1.5Mtr | 1.0Mtr, 1.5Mtr, 2.0Mtr |
