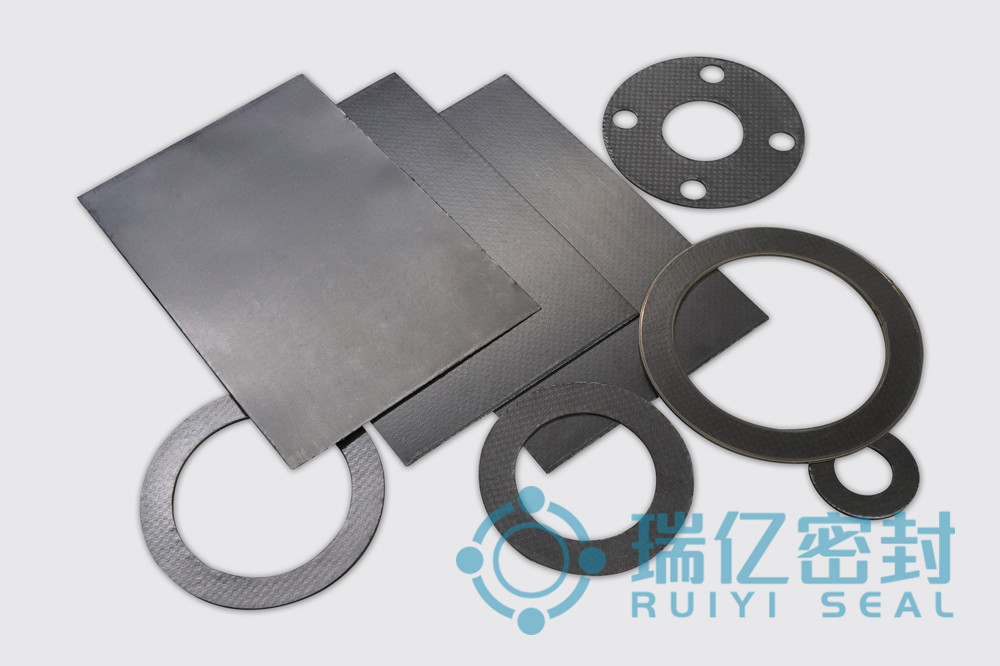

RF-M Reinforced Graphite Sheet

Reinforced graphite sheet with multi-layer 0.05mm SS316 stainless steel tanged insert

RF-M Reinforced graphite sheet with multi-layer 0.05mm SS316 stainless steel tanged insert, the special multi-layer structure provides high temperature resistance, high pressure resistance and excellent sealing performance.

Reinforced graphite sheet is ideal gasket sheet materials for most industrial fluid sealing applications. Recommend to be used in refineries, chemical and petrochemical plants, paper mills, mines and other industrial fields.

  • Reinforcement material: 0.05mm SS316 tanged.
  • Layers of metal core:  2-5layers.
  • Working temperature: 650°C
  • Working pressure: 200bar
  • Bond: mechanically and glue



Our products



Product code Description
RF-T Reinforced graphite sheet with 0.10mm SS304 or SS316 tanged insert
RF-F Reinforced graphite sheet with 0.05mm SS304 or SS316 flat foil insert
RF-W Reinforced graphite sheet with stainless steel wire mesh insert
RF-C Reinforced graphite sheet with 0.20mm Tinplate tanged insert
RF-G Reinforced graphite sheet with glass fiber insert
RF-AL Reinforced graphite sheet with Aluminum foil insert
RF-Ni Reinforced graphite sheet with Nickel foil insert



Dimensions

Thickness Width Length
RF-M 1.5mm, 2.0mm, 3.0mm 1.0Mtr, 1.5Mtr 1.0Mtr, 1.5Mtr, 2.0Mtr
