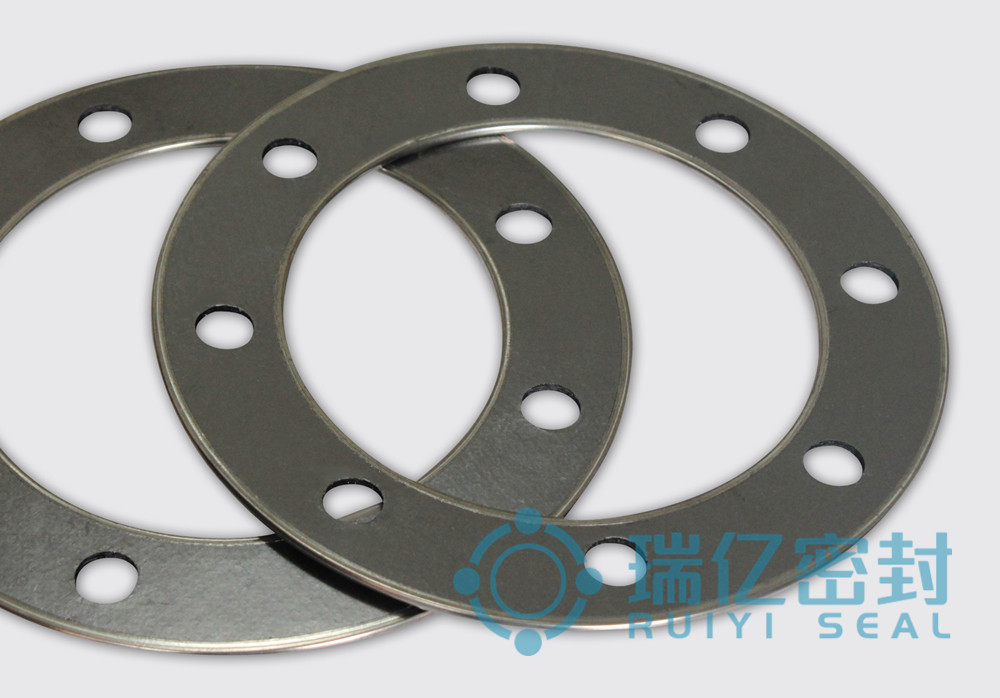

Reinforced Graphite Gasket

Various of reinforced graphite gaskets, customized according to standards or customer requirements

Reinforced Graphite Gasket is cut or molded from our pure graphite sheets or reinforced graphite sheets. Reinforced Graphite gaskets have excellent corrosion resistance, high temperature resistance, excellent compressibility and recovery, widely used for piping, valves, pumps, pressure vessels, heat exchangers, condensers, generators, compressed machine, exhaust pipes, chillers. Reinforced graphite gasket can also cut into any shape of complex gaskets such as water gauge gasket, full face flange gasket and automotive cylinder head gasket.

  • Reinforcement materials: SS304/SS316 tanged, SS304/SS316 foil, wire mesh, nickel foil, aluminum foil.
  • According to ASME, DIN, BS, EN standards and customer requirements.
  • Working temperature: 650°C
  • Working pressure: 200bar
  • Inner and outer eyelet material: SS304 or SS316



Our products



Product code Description
RF-T Reinforced graphite sheet with 0.10mm SS304 or SS316 tanged insert
RF-F Reinforced graphite sheet with 0.05mm SS304 or SS316 flat foil insert
RF-W Reinforced graphite sheet with stainless steel wire mesh insert
RF-C Reinforced graphite sheet with 0.20mm Tinplate tanged insert
RF-G Reinforced graphite sheet with glass fiber insert
RF-AL Reinforced graphite sheet with Aluminum foil insert
RF-Ni Reinforced graphite sheet with Nickel foil insert
