Flexible Graphite Tape
Flexible graphite tape made from flexible graphite foil, filler material for spiral wound gaskets
Flexible Graphite Tape

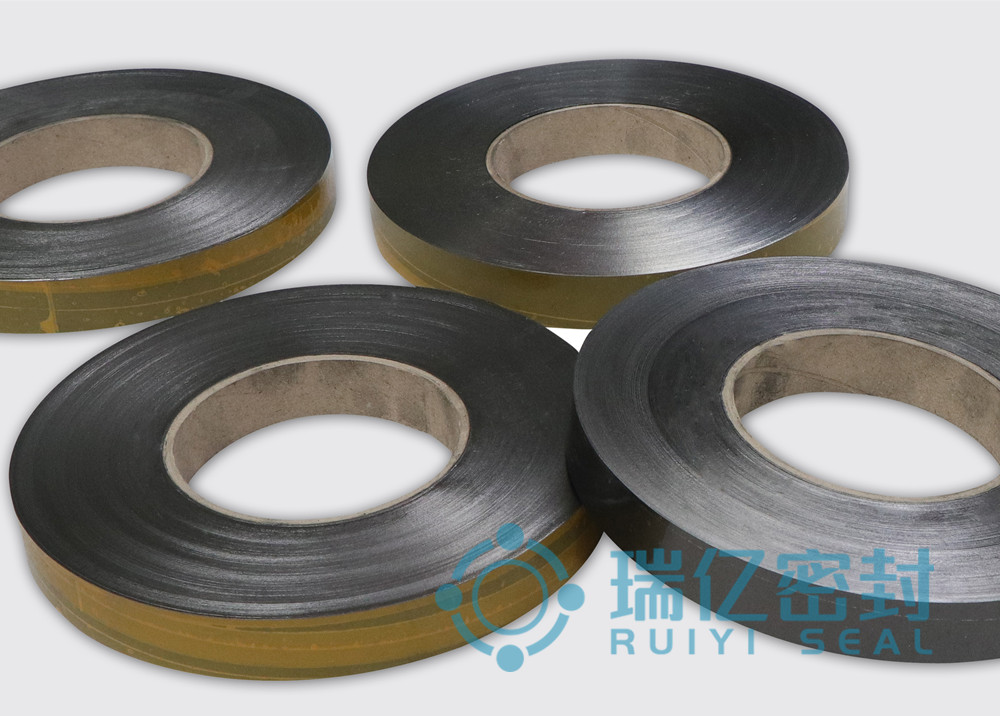

Flexible graphite tape is cut from our flexible graphite foil in rolls by CNC lather which offers excellent sealing capabilities under extreme conditions. Our graphite tape has excellent tensile strength, compressibility and recovery, it is the best filler material for making spiral wound gaskets, graphite molded rings and corrugated graphite tapes.
- Carbon> 99.0%, Sulfur<1200PPM
- Working temperature: -200°C to +550°C (air)
- Working temperature: -200°C to +650°C (steam)
- Working pressure: 140bar
- Density: 0.7-1.1g/cm3
- Self-adhesive backing is available
Our products
| Product code | Description |
| GF-T | Plain graphite tape |
| GF-TB | Plain Graphite tape with self-adhesive backing |
Dimensions
| Thickness | Width | Length | |
| Graphite Tape | 0.2 to 1.0mm | 3.0-500mm | 30Mtr to 120Mtr |
