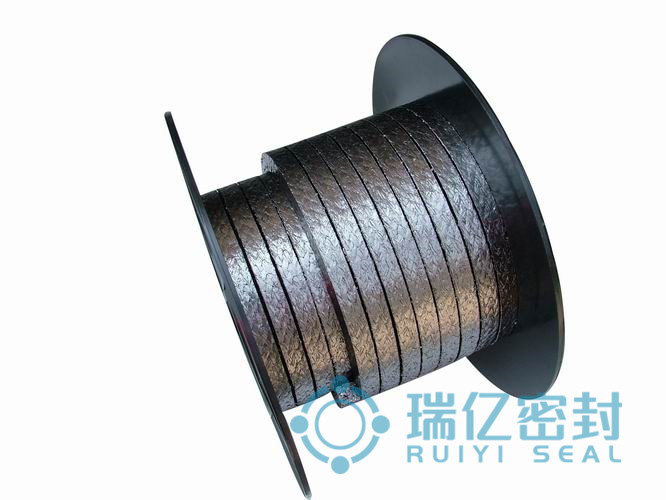

Graphite Packing reinforced with Inconel wire

Each graphite yarn reinforced with an Inconel wire, outside braided or crocheted Inconel wire jacket

Graphite Packing reinforced with Inconel wire is made with graphite yarn cross braided, each strand is reinforced by an Inconel wire. And we also make outside braided or crocheted Inconel wire jacket graphite packing. Recommend for high temperature and high pressure working condition.

Reinforcement Materials

  • Graphite packing reinforced by Multi-Inconel wire
  • Outside braided Inconel Jacket graphite packing
  • Outside crocheted Inconel jacket graphite packing

Technical Data

Rotating Reciprocating Value
Pressure 3Mpa 10Mpa 30Mpa
Temperature -200℃to +550℃
Shaft Speed 23m/s
PH 0-14

Packing

5Kg/Roll, 10Kg/Roll
