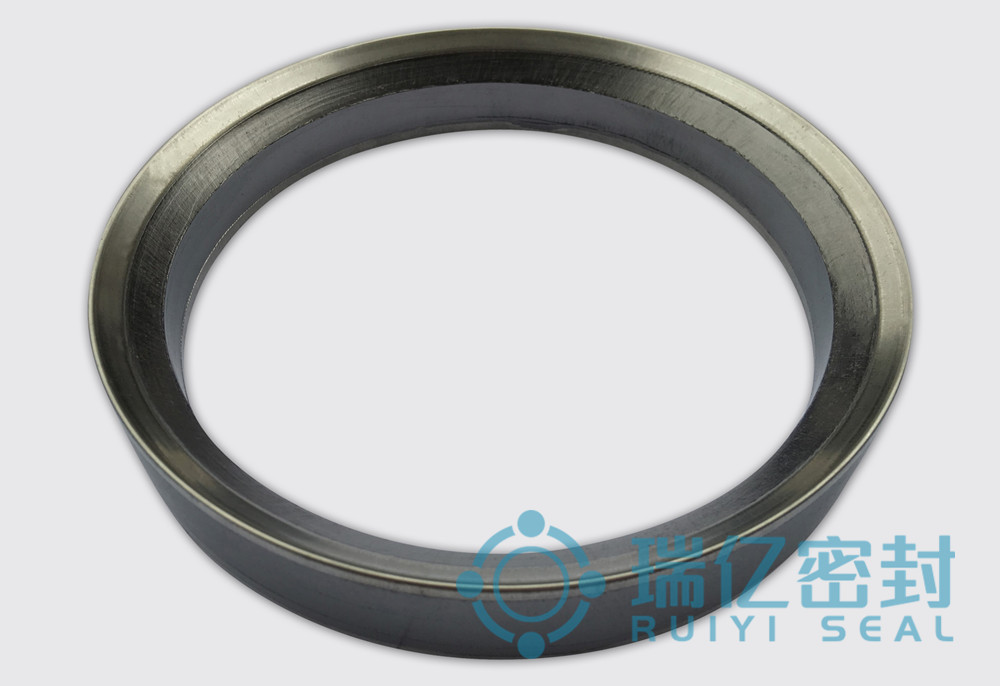

GR-C Graphite Ring with Stainless Steel Caps

Graphite packing ring covers with stainless steel caps at both ends

Graphite packing ring covers with stainless steel caps at both ends, this special design is effective to prevent oxidation of the sealing surface.

  • Carbon content: 99.0%
  • Density: 1.6g/cm3
  • Working temperature: 650°C
  • Working pressure: 300bar
  • Cross section: Square, V and Wedge-shape



Our products



Product code Description
GR-I Pure graphite packing ring
GR-R Graphite packing ring reinforced by SS wire
GR-C Graphite packing ring with SS Caps
GR-M Graphite packing with SS wire both ends
GR-B Braided packing ring
GR-W Stainless steel wire ring



Dimensions



Thickness OD ID
Graphite packing ring >10mm 10-1000mm 20-1100mm
