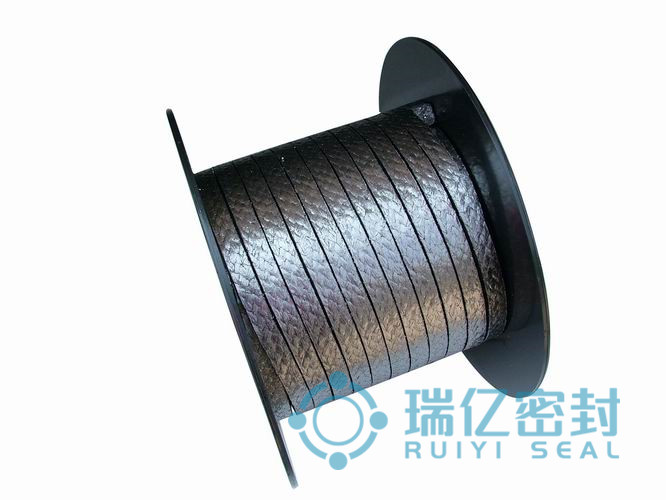

Expanded Graphite Packing

Expanded graphite packing is made with graphite yarn cross braided

Expanded graphite packing is made with graphite yarn cross braided, also can be reinforced by glass fiber, stainless steel wire, copper wire, Inconel wire and carbon fiber.

Reinforcement materials

  • Graphite packing reinforced by cotton fiber
  • Graphite packing reinforced by glass fiber
  • Graphite packing reinforced by stainless steel wire
  • Graphite packing reinforced by copper wire
  • Graphite packing reinforced by carbon fiber
  • Graphite packing reinforced by Inconel wire

Technical Data

Rotating Reciprocating Value
Pressure 3Mpa 10Mpa 20Mpa
Temperature -200℃to +455℃(air)-200℃to +650℃(steam)
Shaft Speed 20m/s
PH 0-14

Packing

5Kg/Roll, 10Kg/Roll
